chuyên nghiệp làm cho chất lượng tốt, cung cấp sản phẩm hoàn hảo và dịch vụ cho mỗi khách hàng.

|
| Nguồn gốc: | Thâm Quyến ở Trung Quốc |
| Hàng hiệu: | SCXK |
| Chứng nhận: | CE/ROHS/FCC/ISO/CB |
| Số mô hình: | P6 |
| Số lượng đặt hàng tối thiểu: | 2 PC |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | Trường hợp bay, vỏ gỗ, thùng carton, tùy thuộc vào bạn. |
| Thời gian giao hàng: | 7-10 ngày làm việc sau khi nhận được khoản thanh toán của bạn |
| Điều khoản thanh toán: | T/T, Liên minh phương Tây |
| Khả năng cung cấp: | 5000m2 mỗi tháng |
| Pixel sân: | 6 mm | Loại đèn LED: | SMD2121 |
|---|---|---|---|
| Hiển thị chức năng: | Video/văn bản/hình ảnh | Không thấm nước: | IP65 |
| MBI: | 5024 | Xem góc: | H: 160 V: 140 |
| Khoảng cách xem tối ưu: | >=6m | Độ sáng: | 5000cd/ |
| sáng tác pixel: | 1 R1G1B | Tham số LED: | R: 625-630nm |
| mô-đun: | 192*192mm | ||
| Làm nổi bật: | P6 outdoor LED billboard,full color LED advertising screen,large building video wall display |
||
| Attribute | Value |
|---|---|
| Pixel pitch | 6mm |
| Led Type | SMD2121 |
| Display Function | Video/Text/Image |
| Waterproof | IP65 |
| MBI | 5024 |
| Viewing angle | H:160° V:140° |
| Optimal viewing distance | ≥6m |
| Brightness | 5000cd/㎡ |
| Pixel composing | 1 R1G1B |
| LED parameter | R:625-630nm |
| Module | 192*192mm |

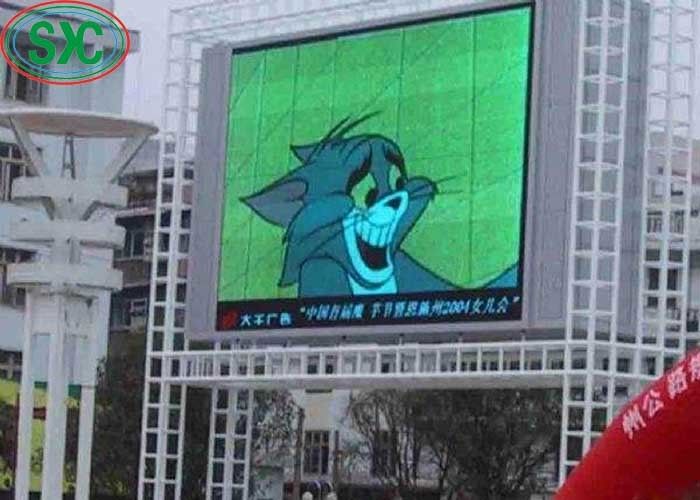

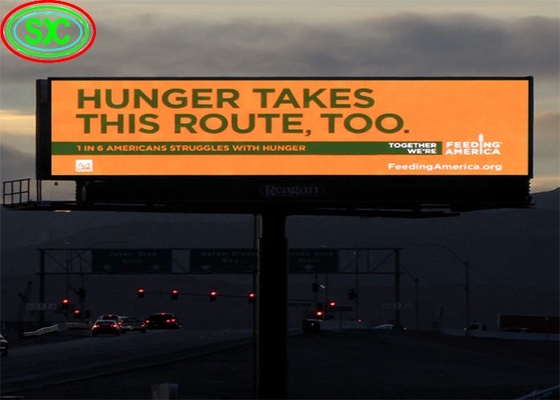

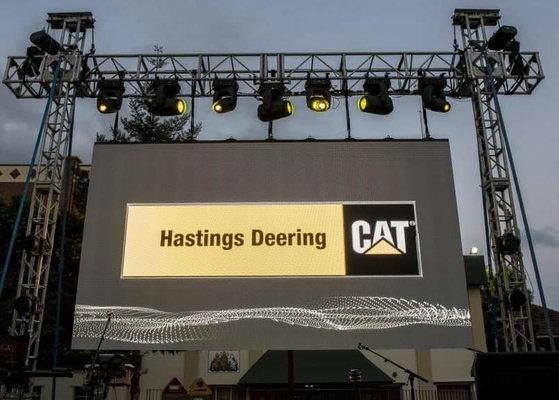

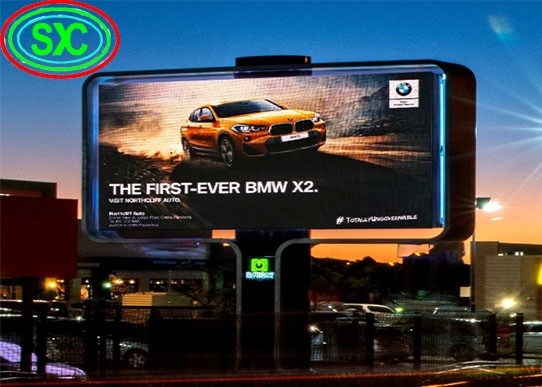

Outdoor Building Street Digital Billboard Mounted Video Wall Large LED Advertising Display Screen
Even if within the warranty period, if the following occurs, certain maintenance costs will be charged:
Any problems in the after-sales service, please contact us directly.
| Parameter | Specification |
|---|---|
| Resolution/mm | 6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 27778/m² |
| Module resolution | 32*32 |
| Module size/mm | 192x192 |
| View distance | 5-400m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >4500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120° |
| Vertical view angle | 60° |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/8) |
| Frame rate | 60Hz |
| Refresh frequency | >3500Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <900W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Items |
Indoor Led display: P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P10 Outdoor Led display: P3, P3.91, P4, P4.81, P5, P6, P8, P10, P12, P16, P20, P25 Dance floor led display DJ led screen Transparent led display |
|---|---|
| Material | steel, aluminum, die casting aluminum |
| Certificates | CE, FCC, RoHS, CCC, UL |
| Payment terms | 30% deposit before production, 70% balance before shipping T/T Western Union |
| Packing | Standard Export Carton with fully Polyfoam or Pearl Wool Flight case; Anti-shaking wooden case |
| Shipping | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service | Lifetime with professional engineer support for free. Within 5 year, supply spare parts for free if has quality problem (not by man-made damage) |
| Using Range | Shopping mall, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on. |
Wooden case or flight case package are available.
Shipping by sea, air or DHL, multiple shipping ways for your choice.
Continues Quality
With more than 10 years experience in led display producing, equipments are updated regularly. What's more, unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology, our company have built effective modular production. We always stick to promote the technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales: Your purchasing requirements will be highly valued and we'll recommend suitable products to you.
After-sales: We will track the products usage and then constantly perfect our products.
