| Place of Origin: | China ,Guang Dong |
| Hàng hiệu: | Shichuangxinke |
| Chứng nhận: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P4.81 |
| Minimum Order Quantity: | 1 square meters |
|---|---|
| Giá bán: | USD1200-1400per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 4.81 | Pixel configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/13 scanning | Module Size: | 250x250 |
| cabinet size: | 500x500mm | certificates: | CE RoHS FCC CCC UL |
| application: | stadium,airport,shopping mall,street advertising | material: | aluminum |
| warranty: | 3-5 years |
1/13 scanning mode 250x250mm module indoor LED digital display
Quick Detail:
1, High resolution at 43222pixels/㎡;
2, LED Chips: Epistar high brightness;
3, High brightness up to 7000cd/㎡;
4, Power Supply: Meanwell;
5, Control System: Linsn,Nova etc.
Description:
1. P4.81 SMD LED display has high resolution, suitable for outdoor LED screen use;
2. Both horizontal and vertical viewing angles are 140 degrees;
3. The use of P4.81 for electronic digital signage is increasing, as the trend of LED screens is high resolution.
4. Clear and realistic advertising images and videos;
5. High contrast ratio of 1000:1, presenting a real and natural color LED screen;
6. IP65 waterproof, suitable for outdoor use;

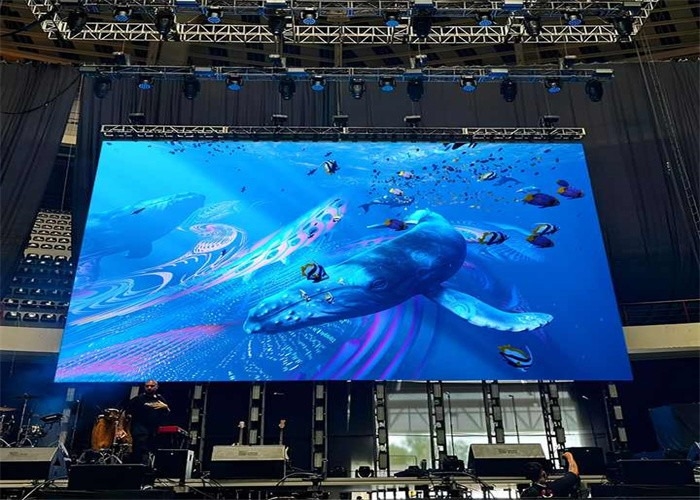

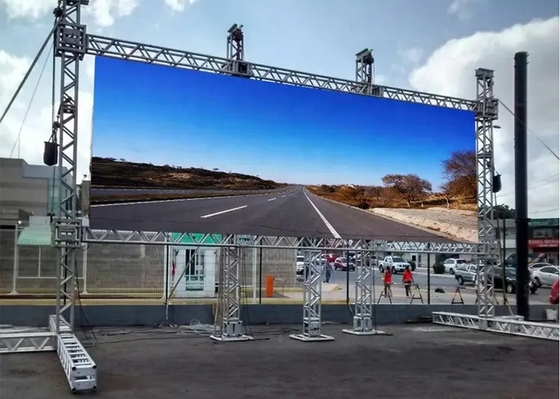

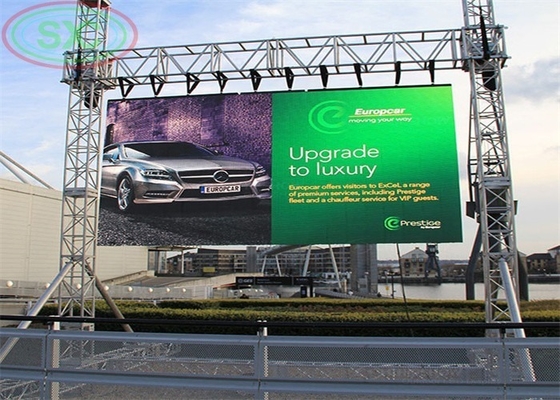

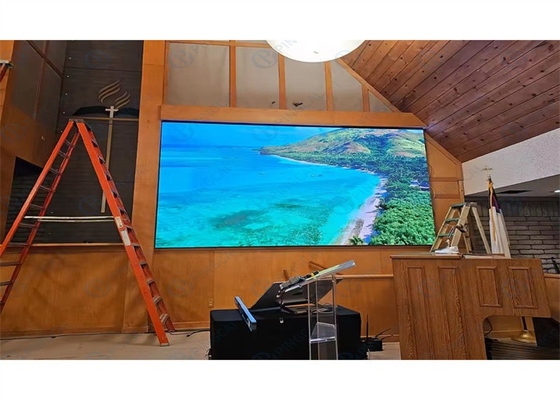

Applications:
Airport indoor full-color LED display
Railway station indoor full-color LED display
Entertainment bar indoor full-color LED screen
Stadium indoor full-color LED display
Museum indoor full-color LED display
Auto exhibition LED display
Meeting room indoor full-color LED video display
Shopping mall indoor full-color LED display
Specifications :
| outdoor SMD P4.81 | |||||
| Resolution/mm | 4.81 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 43222/m² | ||||
| Module resolution | 52z52 | ||||
| Module size/mm | 250x250mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/㎡ | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/13 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Competitive advantages:
1, P4.81 SMD outdoor full color LED display uniform in brightness and color;
2, Full color P4.81 LED screen is utilizing full black color LED chips;
3, Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content;
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5, Large viewing angle at 140 degree horizontal and vertical;
6, P4.81 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;
♦ Production process
1) Incoming Inspection→2)DIP→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
