Nguồn gốc: | China ,Guang Dong |
Hàng hiệu: | Shichuangxinke |
Chứng nhận: | CE RoHS FCC CCC TUV UL |
Số mô hình: | SCXK-P25 |
Số lượng đặt hàng tối thiểu: | 1 square meters |
---|---|
Giá bán: | USD 400-750 square meters |
chi tiết đóng gói: | wooden box flight case, wooden case, carton, it is up to you. |
Thời gian giao hàng: | 7-10 working days after deposit payment received |
Điều khoản thanh toán: | L/C, T/T, Western Union |
Khả năng cung cấp: | 5000sqm per month |
pixel pitch: | 25mm | Pixel configuration: | 1R1G1B |
---|---|---|---|
Scanning Mode: | static full color | Module Size: | 200x200mm |
cabinet size: | 1600x1200mm | certificates: | CE RoHS FCC CCC UL |
application: | stadium,airport,shopping mall,street advertising | material: | aluminum |
warranty: | 2-3 years | ||
Điểm nổi bật: | advertising led display board,advertising led billboard |
1R1G1B Ultra Thin Rental Outdoor Led Screen Video Wall 25mm Pixel Pitch
Features
1.Good LEDs: use Epistar DIP LEDs, it has excellent performance in antistatic ability and UV protection; Waterproof SMD 3 in 1 LED lamp: IP65 grade, all-weather available, much better white balance performance than DIP series.
2.Energy saving: low electric current, high-bright lamps, equipped with PFC switching power supply, save 30% electricity.
3.High refresh rate, high gray level: it can reach 16bit by using PWM driving IC, refresh rate is more than 4000HZ, the gray level is still high even under the condition of low brightness.
4.Color correction: support dot-to-dot correction, guarantee the consistence of LED color and brightness, No chromatic aberration for new screens.
5.Dual back-up: both power supply and system dual back-up are optional, reliable performance.
6.Error detection and monitoring: it can monitor the inner temperature, voltage, cooling fans etc. and error detection authomatically.
Applications

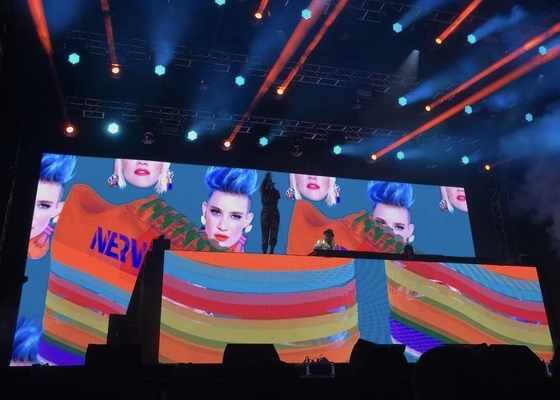

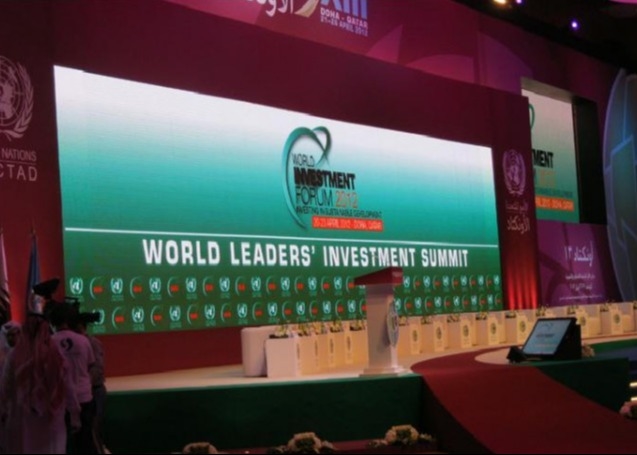

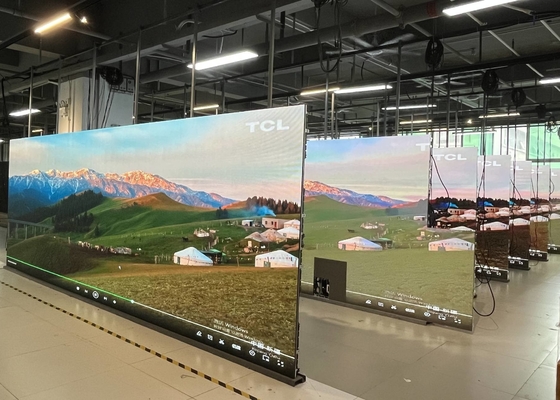

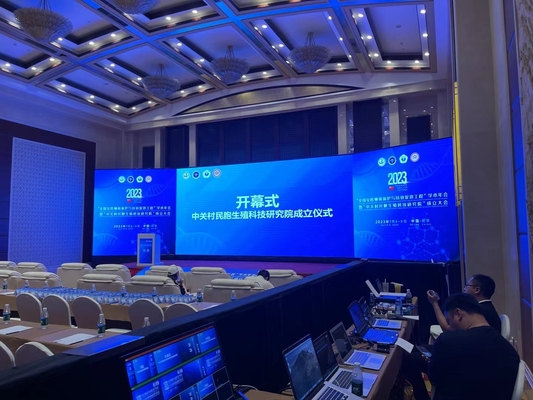

Applied to outdoor places such as station, port, airport, meeting room, shopping mall, hotel, building, stadium etc. It uses as video and information display.
Specifications
outdoor DIP P25 | |||||
Resolution/mm | 25 | ||||
Pixel configuration | 1R1G1B | ||||
Pixel density/pixels/m² | 1600/m² | ||||
Module resolution | 8x8 | ||||
Module size/mm | 200x200MM | ||||
View distance | 14-300m | ||||
Single point brightness adjust | Can be added | ||||
Single point color adjust | Can be added | ||||
White balance brightness | >7500cd/㎡ | ||||
Color temperature | 6500K-9500K | ||||
Horizontal view angle | 120(degrees) | ||||
Vertical view angle | 60(degrees) | ||||
Signal Process bit | 10 or 16bit | ||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
Driving mode | Constant driving current | ||||
Scanning mode | 1/4 SCANNING | ||||
Frame rate | 60Hz | ||||
Refresh frequency | >3000Hz | ||||
Control mode | Computer synchronous | ||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
255 steps. No grey loss | |||||
Out of control point | <1/10000 | ||||
Working hours | ≥72hours | ||||
Mean Time Between Failure | >5000hours | ||||
Life time | 100000hours | ||||
Life-all-white(brightness halving) | 50000hours | ||||
Environment temperature range | Operating temperature range: -20-45℃ | ||||
Self-check technology | LED spot self-check, communications check, power check, | ||||
temperature monitor(need customization) | |||||
Remote monitoring | Remote supervision and control, record potential fault, | ||||
send out warning signs to the operators.(need customization) | |||||
Software environment | WindowsNT,Windows1999,WindowsXP | ||||
Luminous point width between centres | Deviation<3% | ||||
Brightness uniformity | <10% | ||||
Color uniformity(chromaticity coordinate) | ±0.003 | ||||
Power supply request | AC85-264V(50Hz-60Hz) | ||||
Contrast | (1000:1) | ||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
Humidity(working) | working:10-95% | ||||
Humidity(storing) | storing:10-95% |
Trade Info
1).Trade terms: FOB,CIF,EXW
2).Payment terms: T/T ,Western Union, Paypal, Escrow, Moneygram
3) Payment condition: T/T ,30% deposit before production, 70% balance before delivery
4).Production lead time less 20 sqm: 8-15days, more than 50 sqm:30days. Sample can be deliveried within 3days
5).Shipping: by sea,by air and by express delivery
6).Shipping port: Shenzhen, Mainland China
