|Place of Origin:||ShenZhen in China|
|Minimum Order Quantity:||2sqm|
|Packaging Details:||flight case, wooden case, carton, it is up to you.|
|Delivery Time:||7-10 working days after receive your payment|
|Payment Terms:||Western Union, MoneyGram, D/P, T/T, L/C|
|Supply Ability:||5000sqm per month|
|Điểm ảnh:||6 mm||Chip màu:||đầy đủ màu sắc|
|Loại LED:||SM272727||Chức năng hiển thị:||Video|
|Buồng:||gang nhôm đúc, nó là lên bạn||Kích thước tủ:||320mm * 160mm / 192 * 192mm|
|Điện áp làm việc:||DC5V||Thời gian bảo hành:||3 tuổi|
|mật độ chấm:||27778||chế độ lái:||1 / 8scan|
|Giấy chứng nhận:||CE, RoHs, FCC, ISO||chấm piexl:||32 * 32|
|kích thước màn hình:||960 * 768mm / 576 * 576mm|

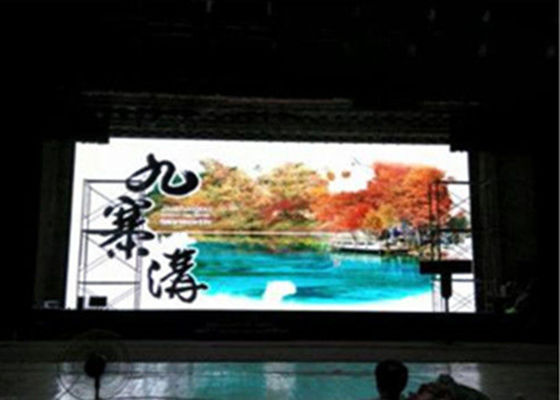

6Mm High Brightness SMD LED Screen , led video wall panels high refresh rate
Famous Brands Raw Material Selection
1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.
Part B: Specificatio
|Pixel||Pixel pitch: 6mm|
|Pixel configuration: 1R1G1B|
|Brightness: Red: 600mcd Green: 2300mcd Blue: 500mcd|
|Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm|
|Module||Module size: 192mmx192mm|
|Cabinet||Cabinet resolution:16384 pixels|
|Cabinet material: Steel|
|Gross weight: 20kg|
|Module quantity: 16pcs= 4(w) x 4(h)|
|Cabinet size: 768mm×768mm×100mm|
|Power consumption : Max.:1000W/m² Average: 400W/m²|
|Screen parameter||Drive method: 1/16 scan|
|IC driver: MBI 5024|
|Whole display flatness: ≤ 1mm juncture|
|Best view distance: ≥ 3m|
|Viewing angle: Horizontal: 120° Vertical: 120°|
|Humidity(RH): ≤ 90~95%|
|Working temperature: from -20°C~ +50°C|
|Working voltage: AC220V/110V±20%|
|Refresh frequency: ≥ 300Hz(Linsn)|
|Frame rate: ≥ 540Hz|
|Protection grade: IP54|
|MTBF: More than 10000hrs|
|Life time: 100,000 hrs|
|Control system||Control system: Linsn|
|Signal interface: DVI|
|Communication distance: The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers|
|Systems operating platforms :XP,WINDOWS(WIN95,WIN98,WIN2000)|
|Image adjustment:contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc|
|Life span:100,000 hours|
|Out-of Control rate:0.0001|
|Operating Environment Temperature :-20℃—65℃ Optional|

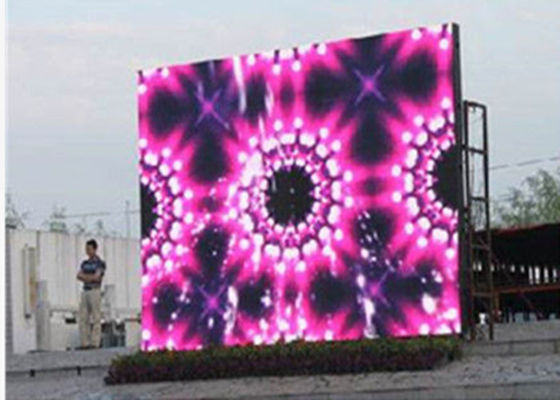

[Specification of Outdoor LED Screen]
|Outdoor Die casting Aluminum 640mm Rental LED Displays|
|Density of pixel/(dots/m2)||22,478||15,625||10,000|
|Resolution of module||48X48||40X40||32X32|
|Main||Optimum viewing distance||7-75m||8-75m||10-150m|
|View angle / °||140 H,120 V||140 H,120 V||110H,60V|
|Max power consumption/W/M2||1100||1000||1000|
|Size of cabinet/mm||640X640||640X640||640X640|
|Resolution of cabinet||96x96||80x80||64x64|
|Weight of cabinet/kg||15||15||15|
|Driving method||1/8 scan constant current||1/4 scan constant current||1/4 scan constant current|
|Refresh rate Hz/S||≥2000||≥2000||≥2000|
|Luminance of white balance||≥5000 nits||≥6000 nits||≥5500 nits|
|Operation of Environmental Temperature/°C||below 30 to above 50|
|Working vlotage||110-220 VAC/+/- 10%|
|Grey scale/color||displaying colors≥16.7M(synchronized)|
|Brightness adjustment||256 levels of each color(manually),100 levels of each color(automatically)|
|Input signal||RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc|
|Control system||linsn(sending card,receiving cards and Hubs)|
|Average of non-failure life||>50,00h|
|Defect dot rate||<0.0001|
1.High brightness and high refresh rate, highly durable
2.Die casting Aluminum cabinets
3.Super Slim &Light Weight
4.Easy to maintain and fast installation
5.Low power consumption and long lifespan
what is the advantages of our P6 outdoor led screen?
Our most attention is the product quality.
Our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 10000 hours.we assure high brightness and long lifespan.
2.Attractive Factory Price:
We are professional manufacturer, has its own factories and production lines. Without middlemen and trading companies, our price is more competitive, quality is more reliable.
3.Perfect Display Effect:
High brightness and clearly led display effect with easy use control system which allow you easy become enviable led display experts.
Kailite has several auto production lines equipment with Taiwan auto-encapsulate machine, Taiwan ChangYu handler, and the production of LED meets the demand of high quality standard LED display.
5. After-sales service :
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.

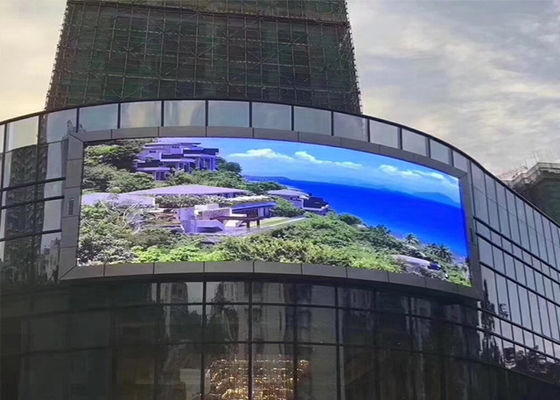

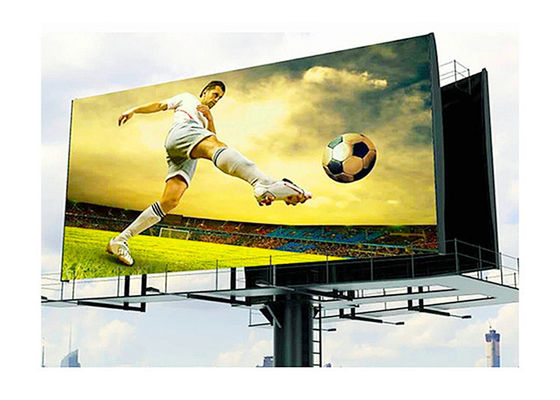

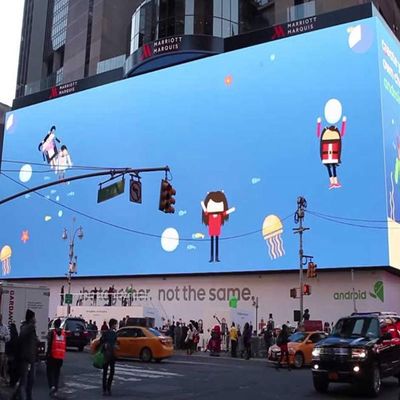

Types of Outdoor led display:
1) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost,
our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all maintenance charges.
Under normal use and storage, our company will be responsible for the equipments.
If there is any failure in product quality, our company will maintain and change the components for free.
After Maintenance period, only charge the material costs fees free of manual work fees.
