Nguồn gốc: | China |
Hàng hiệu: | SCXK |
Chứng nhận: | CE/ROHS/FCC/ISO/UL |
Số mô hình: | P4.81 |
Số lượng đặt hàng tối thiểu: | 1-1000sqm |
---|---|
Giá bán: | negotiation |
chi tiết đóng gói: | flight case, wooden case, carton, it is up to you. |
Thời gian giao hàng: | 7-15 |
Điều khoản thanh toán: | T/T |
Module size: | 250*250 | Protection Level: | IP65 |
---|---|---|---|
LED Shape & Size: | 2mm smd2727 | Brightness: | 6500 |
Pixel Density: | 43222 | Driver mode: | 1/13 |
View Angle: | 120° / 60° | ||
Điểm nổi bật: | advertising led display board,outdoor advertising led display |

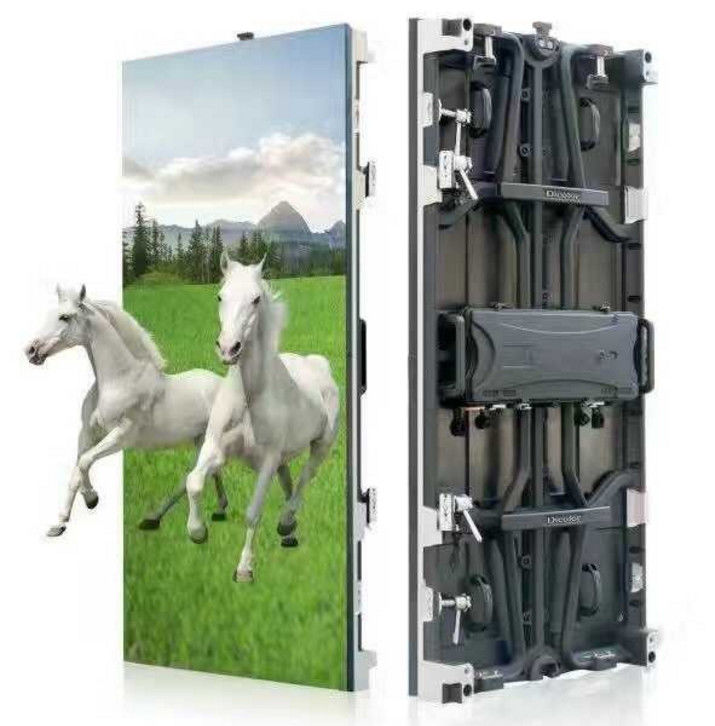

Great waterproof P4.81 Advertising LED Screens Brightness 6500 Protection Level IP64
Model Number | LS-4.81 |
Pixel Pitch | 4.81mm |
Pixel Density(dots/m2) | 43222 |
Pixel Configuration | 3 IN 1 |
LED Type | SMD2727 |
Module size(mm) | 250*250 |
Module Resolution(dots) | 52*52 |
Min.Viewing Distance(m) | ≥4.81 |
Brightness(cd/m2) | ≥7000 |
Viewing Angle(degree) | ≤120° |
Average Power Consumption(w/m2) | 500-580 |
Scan Mode | 1/8 |
Protection Level | IP65 |
Iron Cabinet Size(mm) | 500*500/500*1000 |
Color Temperature | adjustable according to software 100level |
Refresh Rate | ≥1200HZ |
Color | 64g color(on the condition of 4096 gray scale) |
Gray Scale | Recommended 14BIT |
Lifespan | ≥100000hours |
Environment Temperature | Storage:—40°C+85°COperation:-20 °C~+45°C |
Blind Spot Rate | <0.0001 |
Control Mode | Video frequency synchronization |
Cabinet Material | Die casting Aluminum |

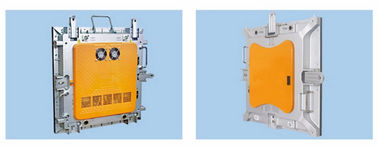

The unique hexagon structure design, flat and firm
The back of the cabinet modules adopts the hexagon structure design concepts. This kind of aluminum structure ensures the feature of firmness and flatness to the largest degree. The whole screen is of typical feature after being assembled.
HD image brings you more perfect visual experience
The smallest pixel pitch of this series can be 4.81mm. The image is of very high definition. Even viewing in close range, the image will show no obvious pixel grainy. So it applies to outdoor installation perfectly.

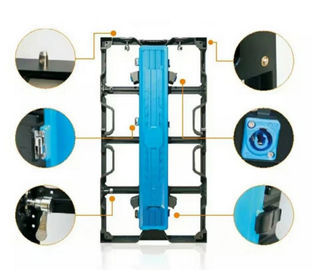

Fast installation, high precision and less weight
Fast lock system, 80% higher efficiency in installation. Die-casting aluminum cabinet, high precision and less weight.

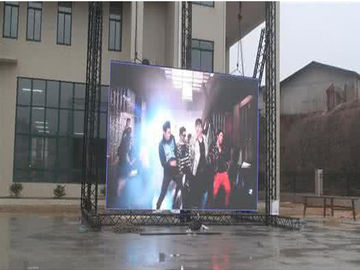

High IP grade and applicable to rainy weather
It is shown from the detecting data by third-party professional institutes: the protection level can reach up to IP65, and the product is applicable to any rainy weather, thus can be used in outdoor environments.
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3:Indoor/Outdoor (P4mm/P5mm/P6mm / P8mm/P10mm/P16mm)
Q4: Where is it used for?
A4:indoor/Outdoor, widly used in airports, stations, ferry ports, stadium, banks, schools, factories, posts, shopping malls, hospital, industry and commerce departments, tax administration, costomhouse, monitoring center, advertings and entertainment industry
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Q7: How about the size of project?
A7: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
