chuyên nghiệp làm cho chất lượng tốt, cung cấp sản phẩm hoàn hảo và dịch vụ cho mỗi khách hàng.
 |
| Nguồn gốc: | China |
| Hàng hiệu: | SCXK |
| Chứng nhận: | CE/ROHS/FCC/ISO/UL |
| Số mô hình: | P3 |
| Số lượng đặt hàng tối thiểu: | 3sqm |
|---|---|
| Giá bán: | negotiation |
| chi tiết đóng gói: | flight case, wooden case |
| Thời gian giao hàng: | 10-15 WORK DAYS |
| Điều khoản thanh toán: | T/T |
| Kích thước mô-đun: | 192 * 192 | Mức độ bảo vệ: | IP34 |
|---|---|---|---|
| Hình dạng & Kích thước LED: | 2mm smd2121 | độ sáng: | 2000 |
| Mật độ điểm ảnh: | 111111 | Chế độ trình điều khiển: | 1/16 |
| XEM ANGLE: | 120 ° / 60 ° | Kích thước tủ: | 576mm * 576mm |
| Điểm nổi bật: | rental led display screen,led rental screen |
||

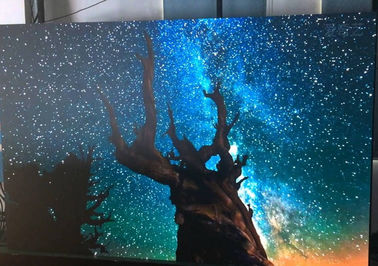

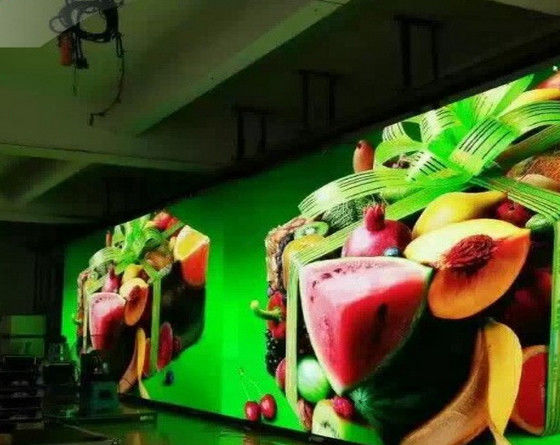

| Item | LightS HD rental full color led screen p3 indoor for the die-casting aluminium cabinet SMD China new technology |
| Model Number | p3 |
| Pixel Pitch | 3 mm |
| Pixel Density(dots/m²) | 111111 |
| Pixel Configuration | 3 IN 1 |
| LED Type | SMD2121 |
| Module size(mm) | 192*192 |
| Module Resolution(dots) | 64*64 |
| Min.Viewing Distance(m) | ≥3 |
| Brightness(cd/m²) | ≥1200 |
| Viewing Angle(degree) | ≤120° |
| Average Power Consumption(w/m²) | 400-750 |
| Scan Mode | 1/16 |
| Protection Level | IP21 |
| Cabinet Size(mm) | 576*576 |
| Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
| Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
| Refresh Rate | LED screen refresh frame frequency recommended is no less than 1200HZ(recommended) |
| Color | 64g color(on the condition of 4096 gray scale) |
| Horizontal/Vertical viewing angle | <120° |
| Gray Scale | Recommended 14BIT |
| Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
Important Knowledge of Led display
1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
