waterproof static full color P16 DIP outdoor LED advertising display

Thông tin chi tiết sản phẩm:

Nguồn gốc:	China ,Guang Dong
Hàng hiệu:	Shichuangxinke
Chứng nhận:	CE RoHS FCC CCC TUV UL
Số mô hình:	SCXK-P16

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 square meters
Giá bán:	USD 500-750 square meters
chi tiết đóng gói:	wooden box flight case, wooden case, carton, it is up to you.
Thời gian giao hàng:	7-10 working days after deposit payment received
Điều khoản thanh toán:	L/C, T/T, Western Union
Khả năng cung cấp:	5000sqm per month

Tiếp xúc

Chi tiết sản phẩm

Độ phân giải / mm:	16	Cấu hình điểm ảnh:	1R1G1B
Chế độ quét:	tĩnh đầy đủ màu sắc	Kích thước mô-đun:	256x256mm
Kích thước tủ:	1024x1024mm	Giấy chứng nhận:	CE RoHS FCC CCC UL
ứng dụng:	sân vận động, sân bay, trung tâm mua sắm, quảng cáo đường phố	Vật chất:	Nhôm
Bảo hành:	3-5 tuổi
Điểm nổi bật:	full color outdoor led display , outdoor full color led screen

waterproof static full color P16 DIP outdoor LED advertising display

1. SMD leds with high brightness for outdoor;

2. Good color uniformity confirm the vivid images and video;
3. Cabinets Seamless splice;
4. Good heat dissipation;
5. Energy-saving to reduce cost;
6. Environment friendly;
7. Brightness self-regulation to avoid the light pollution;
8. Easy operation control system;
9. 2 years warranty at least;
10. Competitive price.

Description:

1, P16 DIP LED display is high resolution for outdoor LED screens use;
2, Large viewing angle at 140 degree horizontal and vertical;
3, Eletronic digital sign P16 is being used more and more, as LED screens trend is high resolution.
4, Clear and vivid advertising image and video;
5, High contrast ratio at 1000:1 to present true and natural color LED screens;
6, IP65 waterproof for outdoor use;

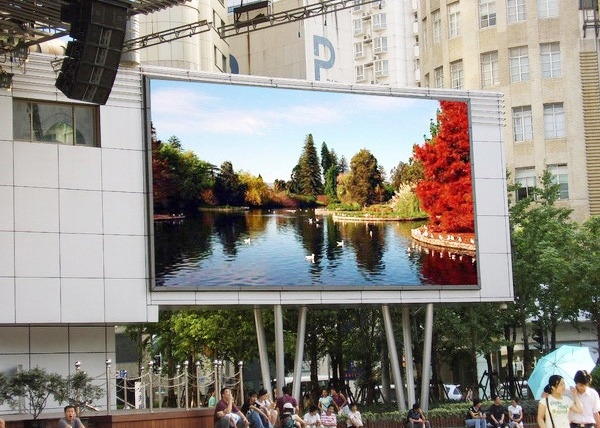

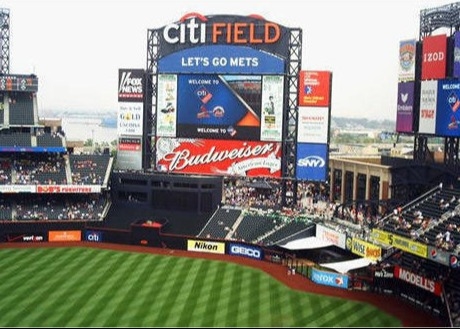

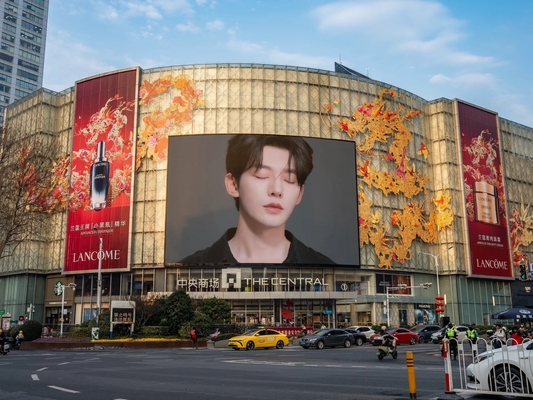

Applications:

Airport Full Color Indoor LED displays

Train station Indoor Full Color LED Displays

Entertainment Bar Indoor Full Color LED Screen

Stadium Indoor Full Color LED Display

Museum Full Color Indoor LED display

Car exhibition LED display

Conference room Indoor Full Color LED Video Display

Shopping Mall Indoor Full Color LED display

Specifications :

outdoor DIP P16
Resolution/mm	16
Pixel configuration	1R1G1B
Pixel density/pixels/m²	3906/m²
Module resolution	16x16
Module size/mm	256x256mm
View distance	14-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>7500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	static full color
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted
	255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check,
	temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault,
	send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Trade terms

1. Hardware: LED display and video controlling system

2. Technical material: English version user manual, installation manual And maintenance manual

3. Service:Provide free technology support by phone and e-mail 7 years guarantee

4. Delivery: Approx 3-12 working days

5. Packing: Anti-shaking wooden package or Air Flight Case.

6. Transportation: By sea or air or Express

7. Two-Three years warranty. Repairing and replacement during the guaranteed period will be free,
but you should bear the freight cost from your place to our factory.

However, we can not guarantee on a workshop for replacement, compensation for damage, and repairing charge taking place within the following situations:

Accident due to careless handling and misusage.
